6DOF and 6DOF Pneumatic cylinder platform
Six degrees of freedom, six seats pneumatic platform. Pneumatic platform seat by compressed air

Shenzhen Jingmin Digital Machine Co., Ltd - it is a real vendor who truly masters the 4D/5D movie theater core equipments and control technology, a core and main supplier for 4D/5D movie manufactures or integrators in this industry, a director and creator of 4D/5D core control technology. It owns pneumatic, hydraulic, electric motion platforms, core control system, key quick editing motion files system. It has supplied core cinema equipments, technology, technology consult and service for almost 70% market shares of manufactures in China and has contributed enormously to the popularization and technology innovation and development of global 4D/5D motion cinema.


Platform and seat introduction:

Our company based on the customoer demands, analyze the strengths and weaknesses of the market across multiple platforms, solid mechanics, software, years of accumulated technology, concentrate on research, has finally launched a cost-effective, highly reliable, rigorous professional 5D pneumatic, hydraulic, electric platform, there are three degrees of freedom, six digrees of freedom



3DOF Pneumatic platform
Galactic phantom 3DOF pneumatic platform, including motion chairs, base and 3 supple agencies, 3 cylinders, 3 displacement sensors and 1 controller. The 3 supple institutions, as well as 3 displacement sensors along the output platform center outward triangular distribution, to ensure that the motion passed without gaps, no friction, lubrication-free, high-precision and high stability, and improve the output platform moving straight angle. Can achieve the majority of dynamic platform action's requirements, of the relatively low price, can be widely used in a large theater. The platform can form a substantial shock and vibration that can make people real feel of the weightlessness and stimulate.

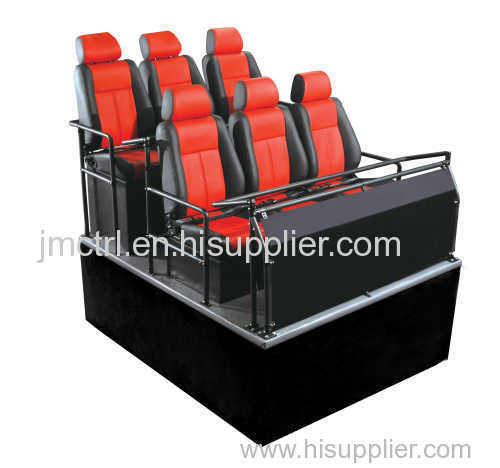

6DOF Pneumatic platform
6 degrees of freedom, 6 seats pneumatic platform. Pneumatic platform seat by compressed air, energy-saving, pollution-free, simple structure, and relatively low cost, precision motion effects, smoothing to fully meet the demands for customer experience


The medium-end and low-end controller:
JMDM-16MT; JMDM-4DI16DO; JMDM-COM20MR;
A. JMDM-16MT: When effects control more than four, external relay enlarged board or use relay to control the exchange of special effects, no precise control cylinder telescopic stroke function, generally used to mini-small, low-end 4D theater experience hall.
B. JMDM-4DI16DO: 16 channels medium-low end and low-end controller
8 special effects control, low-end program, no precise control cylinder telescopic stroke functions, generally used for the Mini small or multi-platform consisting of a large theater in the low-end 4D theater, the experience hall.

C. JMDM-COM20MR: 20channels medium-low end and low-end controller
8 control special effects, directly control of AC special equipment. In the low-end of the program, have no precise control cylinder telescopic stroke functions. Generally used for the Mini small or groups of platforms constitute a large theater, low-end 4D theater, experience hall.


High-end controller: JMDM-COM4D film
JMDM-COM4DFILM control of the high-end 6DOF pneumatic platform or hydraulic platform, the standard configuration can simultaneously control 8 effects and also can be based on customer demand to add a special effects controller, used for the control of over 8 channels special effects. High-end programs, can accurately control cylinder telescopic stoke to protect the cylinder life, the seat motion effects synchronization, realistic, precise, delicate, smooth, generally used to high-quality high-end 4D theater experience hall.

Electric cylinder controller: JMDM-COMSERVO (Used to 3DOF/6DOF electric platform)

Key components of electric cylinder platform JMDM 4D5D6D motion theater core equipment 6DOF/3DOF control system for motion editing system.
